From 2 Mesh To 400 Mesh

All you need to tell us your Specific Requirement.

Material : Stainless Steel, M.S., Copper, Brass, G.I. etc.
Mesh Size or Clear Opening required.
Gauge of the Wire, Width & Length of WireMesh.

All wire products are manufactured as per I.S. standards 49 48 – 68. A certain range of Production is also covered by I.S. 1966 – 67

The Vibrating Screens are made of any Type, Light or Heavy to suit individual requiements as per Design & Drawing provided.

Screens are made on Automatic Machines for a Gauranteed perfection.

Screens are also supplied with edge preparation. The general and practical method of having taut screening surface is accomplished by means of reinforced hooked edges or hook strips formed on the two opposite edges of the screen cloth to be tensioned.

Welded Crimped | Wire Meshes | Qualitysystemsindia.com wiremesh3

Welded Crimped | Wire Meshes | Qualitysystemsindia.com wiremesh2

The various sizes of Filter packs, Strainers Gaskets are made out of Stainless Steel WireMesh of different sizes and layers required by various industries like Petrochemicals, Food, Feretilizers, Nylon etc….

Sreens of perforated sheets are fabricated and supplied as per industrial requirements as under :

Chemical industries
Sugar industries
Mining
Stone industries etc.

All Types of metal conveyors belts of proven quality for transportation of general bulk goods as well as for many special purpose are made out of Stainless Steel Wirem, H.B. Wire, or any other metal using round, semi-round and flat wire perfomed to narrow or wide sparts.

Advantages of our Belts are uniformity, stability and no Elongation from Humidity.

Chain Link fencing and barbed wires are made out of hot DIP galvanised wire. Chain Link can be supplied upto 12th width.

Application : Fencing of Factories, Poultry Farms, Gardens etc….

Welded Crimped | Wire Meshes | Qualitysystemsindia.com wiremesh4

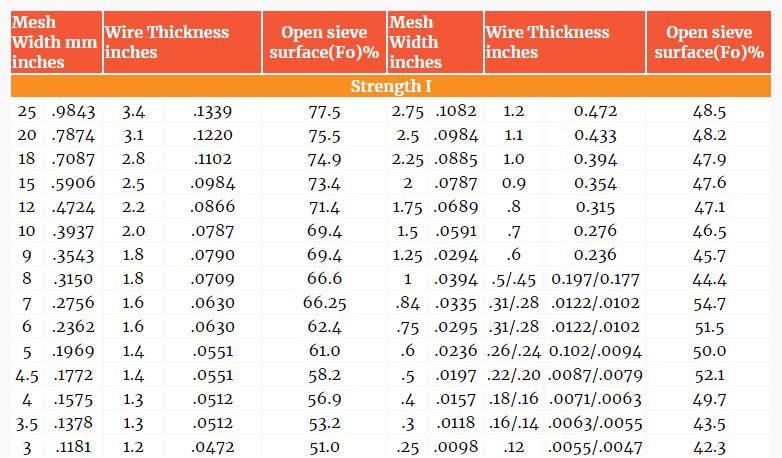

Mesh Width mm inches Wire Thickness inches Open sieve surface(Fo)% Mesh Width inches Wire Thickness inches Open sieve surface(Fo)%
Strength I
25 .9843 3.4 .1339 77.5 2.75 .1082 1.2 0.472 48.5
20 .7874 3.1 .1220 75.5 2.5 .0984 1.1 0.433 48.2
18 .7087 2.8 .1102 74.9 2.25 .0885 1.0 0.394 47.9
15 .5906 2.5 .0984 73.4 2 .0787 0.9 0.354 47.6
12 .4724 2.2 .0866 71.4 1.75 .0689 .8 0.315 47.1
10 .3937 2.0 .0787 69.4 1.5 .0591 .7 0.276 46.5
9 .3543 1.8 .0790 69.4 1.25 .0294 .6 0.236 45.7
8 .3150 1.8 .0709 66.6 1 .0394 .5/.45 0.197/0.177 44.4
7 .2756 1.6 .0630 66.25 .84 .0335 .31/.28 .0122/.0102 54.7
6 .2362 1.6 .0630 62.4 .75 .0295 .31/.28 .0122/.0102 51.5
5 .1969 1.4 .0551 61.0 .6 .0236 .26/.24 0.102/.0094 50.0
4.5 .1772 1.4 .0551 58.2 .5 .0197 .22/.20 .0087/.0079 52.1
4 .1575 1.3 .0512 56.9 .4 .0157 .18/.16 .0071/.0063 49.7
3.5 .1378 1.3 .0512 53.2 .3 .0118 .16/.14 .0063/.0055 43.5
3 .1181 1.2 .0472 51.0 .25 .0098 .12 .0055/.0047 42.3
Strength II Strength III
25 .9873 4.2 .1650 73.3 25 .9843 4.6 .1814 67.8
20 .7874 3.8 .1496 70.6 25 .9843 4.6 .1814 67.8
18 .7087 3.4 .1339 70.7 20 .7874 4.2 .1654 68.3
15 .5906 3.1 .1220 68.8 18 .7087 3.8 .1496 68.2
12 .4724 2.8 .1102 65.8 15 .5906 3.4 .1339 66.4
10 .3937 2.5 .0984 64.0 12 .4724 3.1 .1220 63.2
9 .3543 2.2 .0866 64.6 10 .3937 3.1 .1220 58.3
8 .3150 2.2 .0866 61.5 9 .3543 2.8 .1102 58.2
7 .2760 2.0 .0787 68.5 8 .3150 2.8 .1102 50.2
6 .2362 2.0 .0787 56.3 7 .2756 2.5 .0984 54.3
5 .1969 1.8 .0709 54.1 6 .2362 2.2 .0866 53.5
4.5 .1772 1.8 .0709 51.0 5 .1969 2.2 .0866 48.2
4 .1575 1.6 .0630 51.4 4.5 .1772 2.0 .0787 47.9
3.5 .1378 1.6 .0630 47.1 4 .1575 1.8 .0709 47.5
3 .1181 1.4 .0551 46.5 3.5 .1387 1.8 .0709 43.6
2 .0789 1.1 .0433 39.1 3 .1181 1.6 .0630 42.5
1 .0394 0.7/0.8 .0276/.0315 32.7
