54 Inch Box Exhaust Fan
🐔 Environment Control – 54 Inch Box Exhaust Fan
Stable Environments for Healthier Livestock.
Product Details:
Type: Other
Material: Galvanised Steel
Feature: 275 GSM
Technology: Automatic
Size: 50″ Dia Fan
Color: Grey
Product Description:
Product Parameters: Rated Power 1.1kw, air volume data are as follows.
| 50 Box Fan | Negative pressure PA | 0 | 12 | 25 | 37 | 50 | 62 |
|---|---|---|---|---|---|---|---|
| Air Volume m2/h | 38400 | 36900 | 35100 | 32900 | 30100 | 26900 |

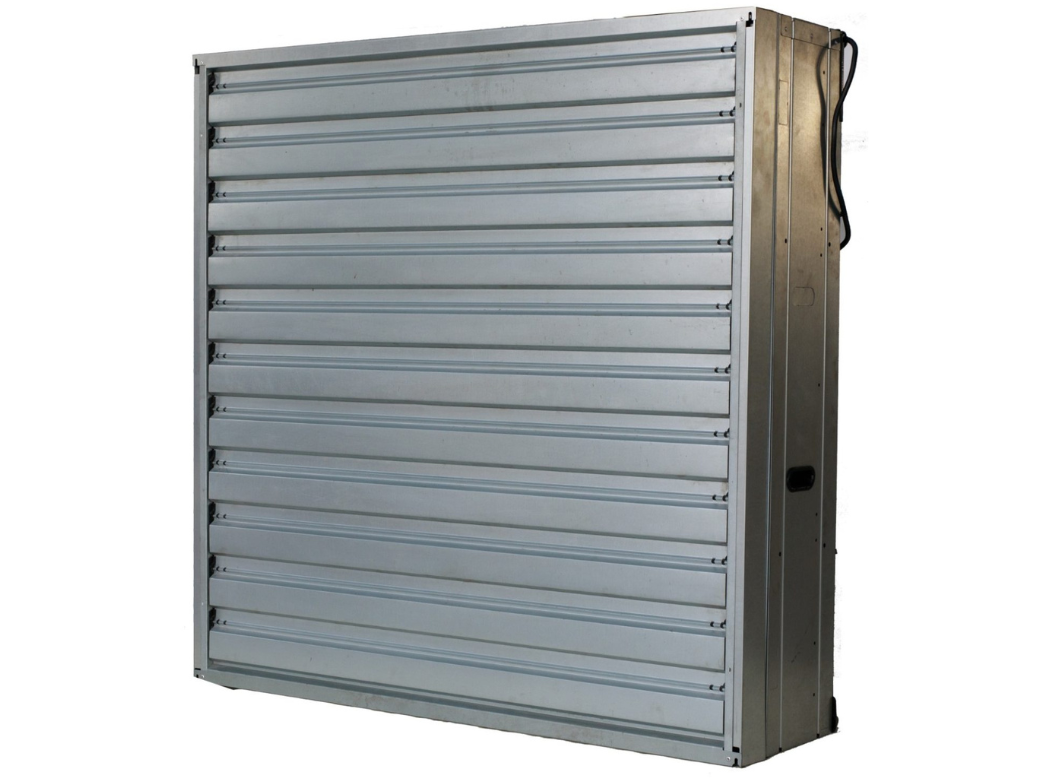

54″ Box Exhaust Fan
| Size | 50″ Dia Fan |
|---|---|
| Blades | 6 stainless steel |
| Motor H.P. | 1.5 hp, with v- belt drive 3 phase |
| R.P.M. | 1440 RPM, 415 V AC. 50 hz |
| Shutter | Galvanised shutter |
Opens with gravity; doesn’t require any centrifugal clutch system
