54 Inch Cone Exhaust Fan
🐔 Environment Control – 54 Inch Cone Exhaust Fan
Stable Environments for Healthier Livestock.
Product Details:
Type: Other
Material: Galvanised Steel
Feature: 275 GSM Butterfly Design shutter
Technology: Automatic
Size: 50″ Dia Fan
Color: Grey
Product Description:
50 Butterfly Cone Fan
- Suitable for the ventilation and cooling of chicken coops and stable operation.
- Fan leaves are made of stainless steel material with a bright surface and a self-cleaning function.
- The automatic tensioning device used can improve the transmission efficiency and reduce the maintenance frequency.
- The narrowed air duct is optional, which is suitable for a poultry house with compact gable wall space.
Product Parameters: Rated Power 1.1kw, air volume data are as follows.
| 50 Butterfly Fan | Negative pressure PA | 0 | 12 | 25 | 37 | 50 | 62 |
|---|---|---|---|---|---|---|---|
| Air Volume m2/h | 42300 | 41000 | 38500 | 36900 | 34000 | 30500 |
54″ Cone Exhaust Fan
| Size | 54″ Dia Fan |
|---|---|
| Blades | 6 stainless steel |
| Motor H.P. | 1.5 hp, with v- belt drive 3 phase |
| R.P.M. | 1440 RPM, 415 V AC. 50 hz |
| Shutter | Galvanised Butterfly Design shutter |
| Fan | Duly housed in Galvanized Frame |

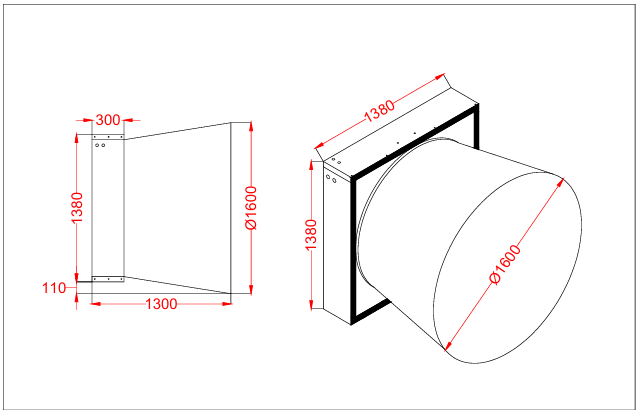

CONE FAN 1 – Model

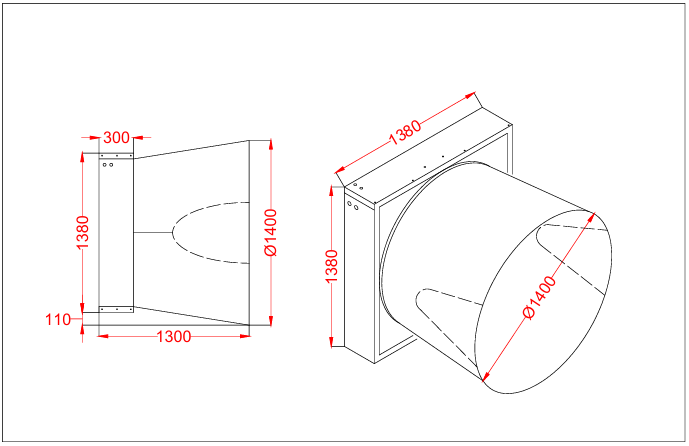

CONE FAN 2 – Model
