🐔 Layer – Battery Cage
Cages – Superior Suspension and Real Flexibility

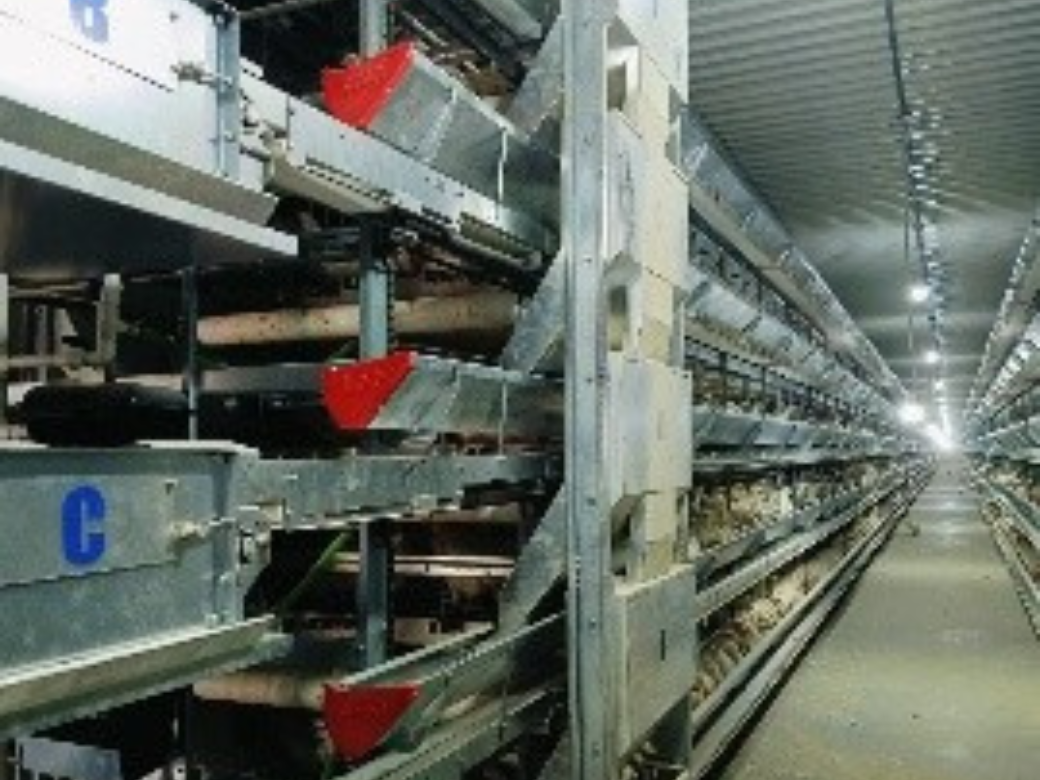

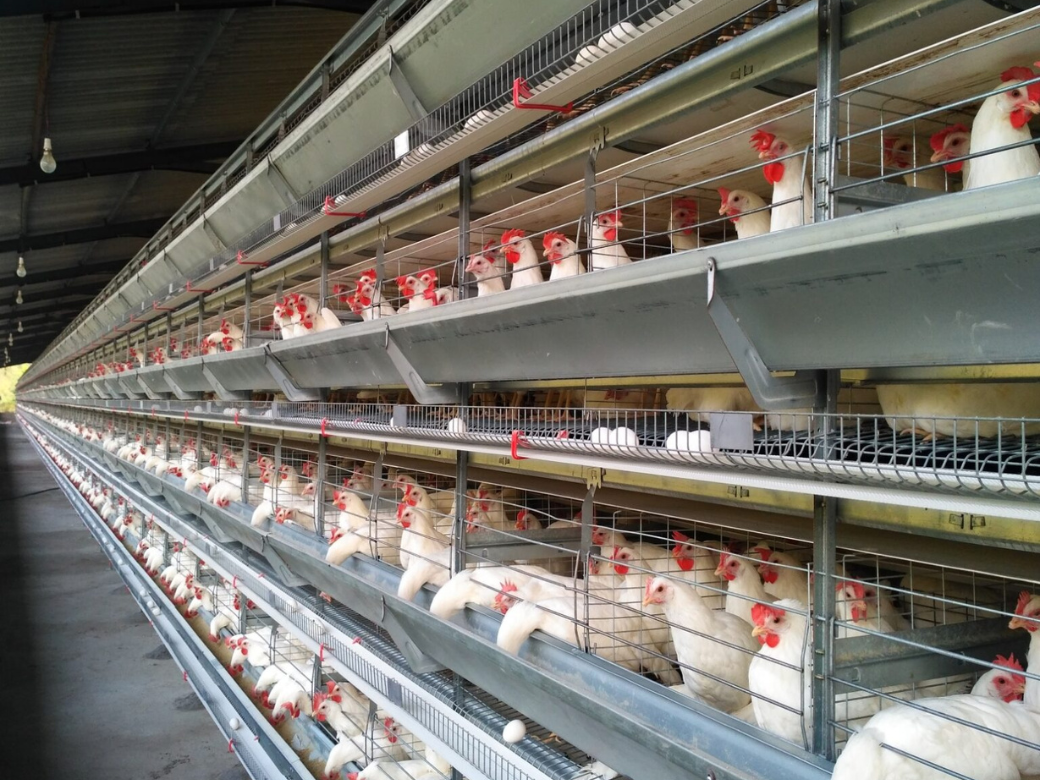

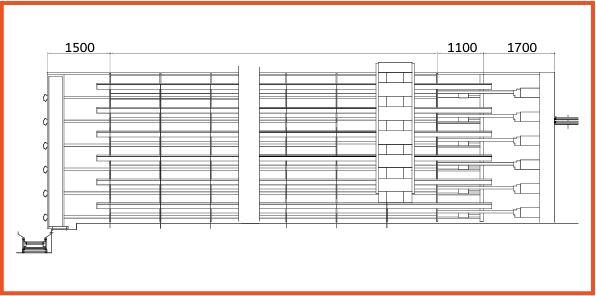

Layer “H” Frame Cages
QS Steel wire cage is completely fabricated in Hotdeep Galvanized 275 GSM coated cagemanufacturing facility. The Quality & Strength of our cages are the result of more than 40 years of our experience in this field with continuous innovation & development of new techniques from time to time to meet customer & industry requirements.
Feed Trolley
Ensures uniform feed distribution with no wastage and no build-up of feed at the ends of the trough. It is possible to arrange for several feeding sessions during the day.

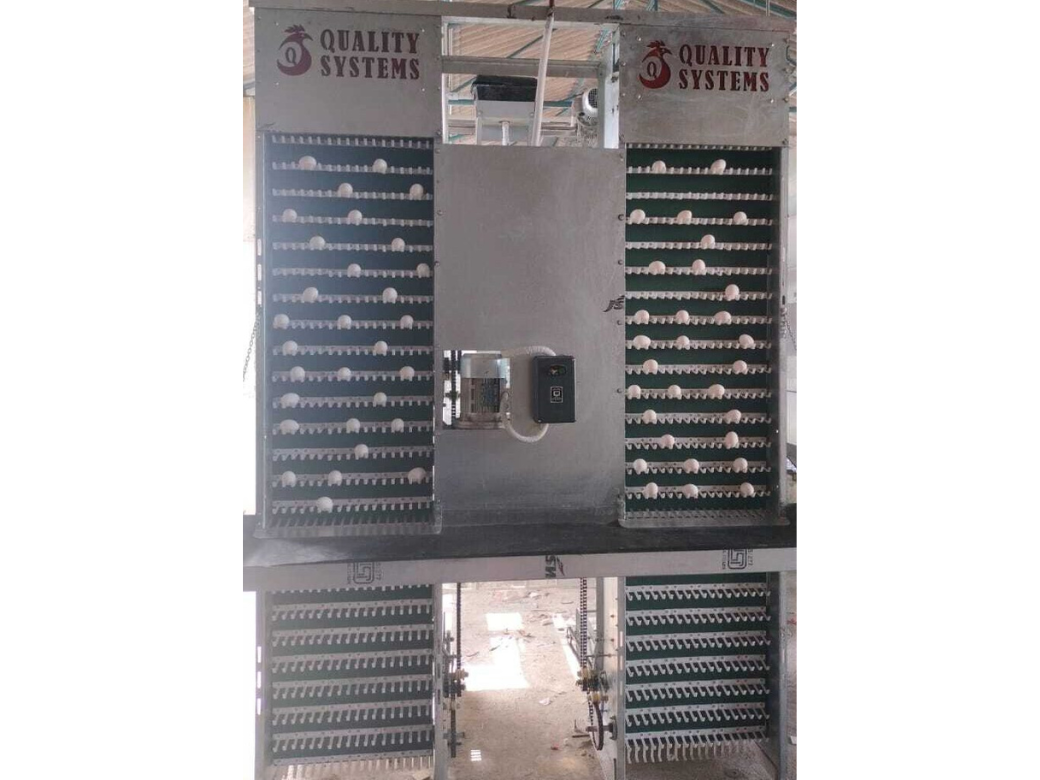

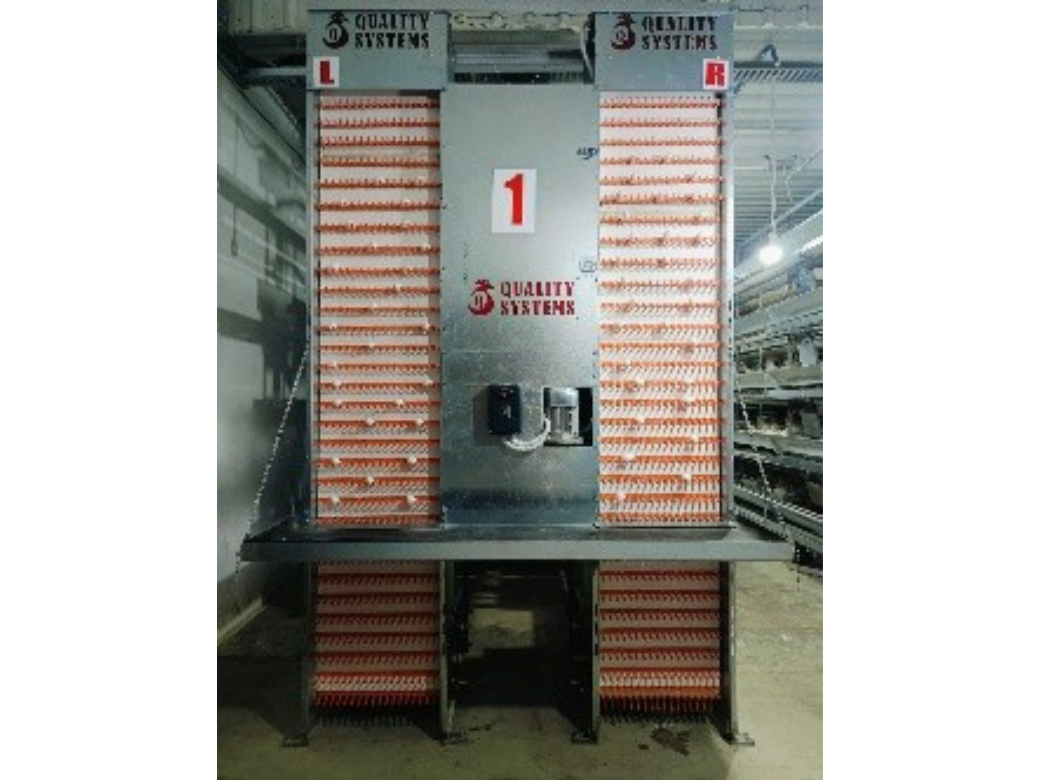

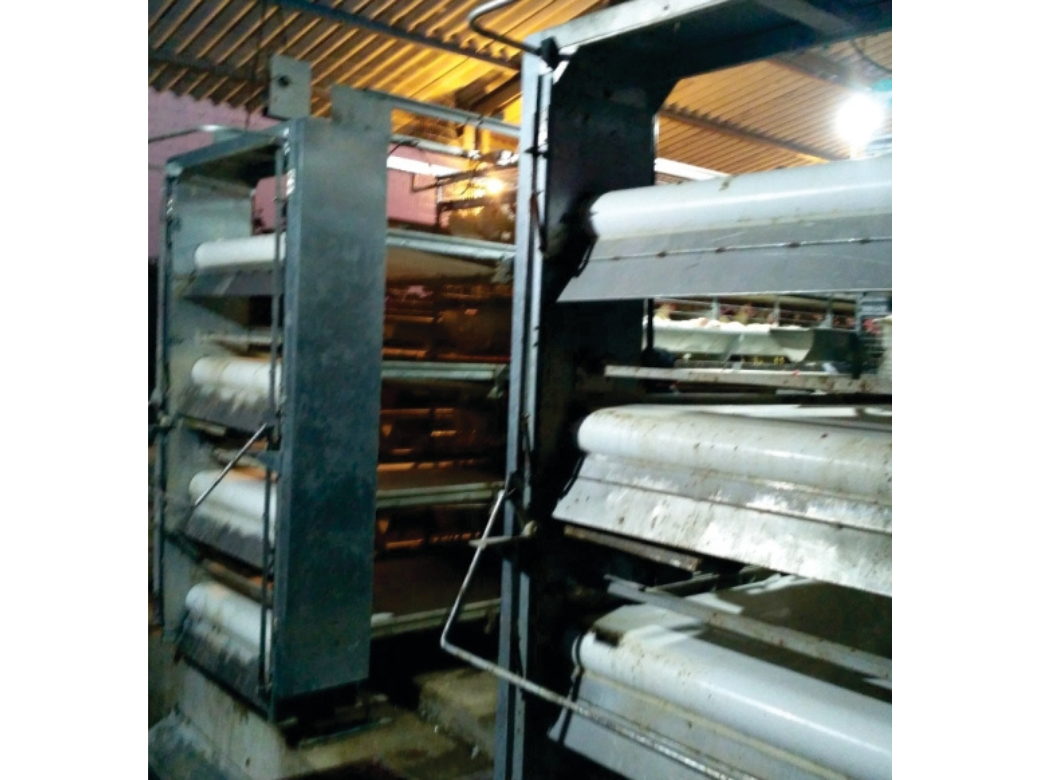

Egg Collection
The system enables simultaneous collection of all the eggs laid inside the cage. The option of Cross conveyor is available to transport all eggs to the packing room.

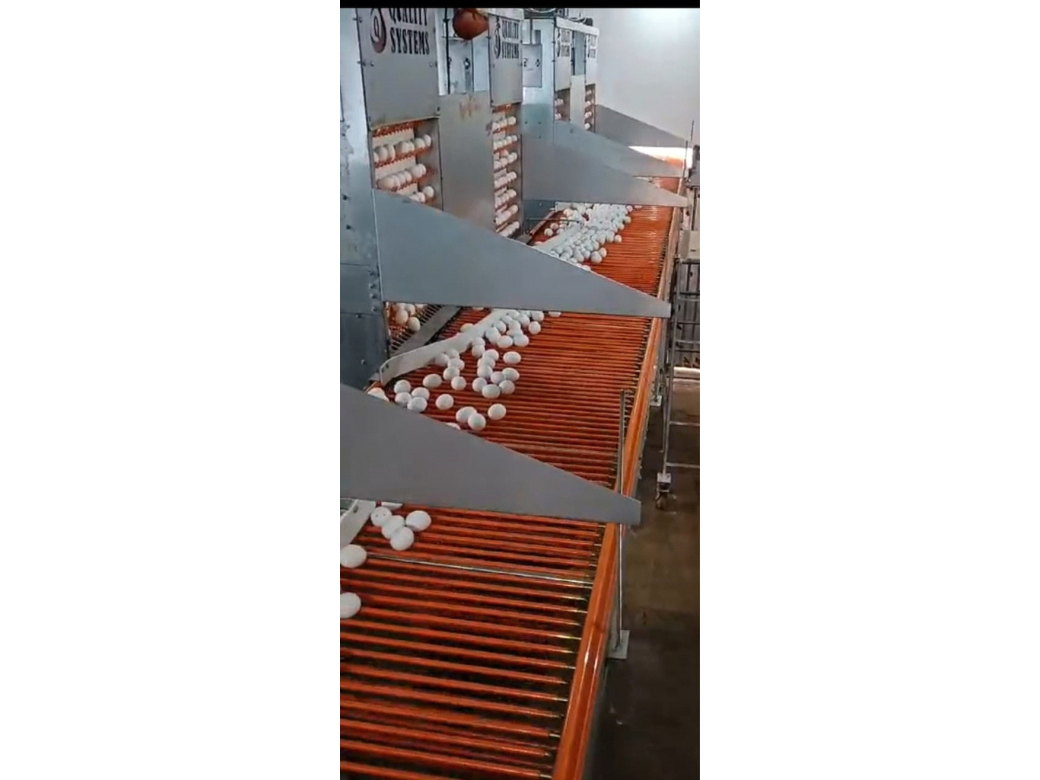

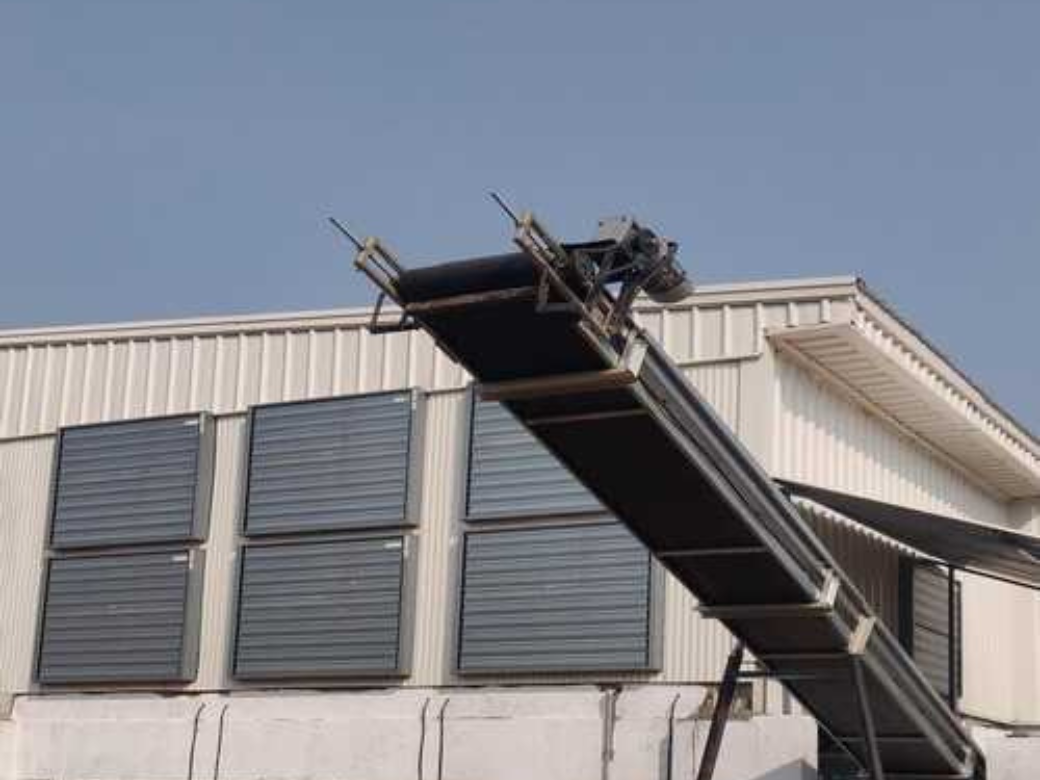

Egg Conveyor
Available in various widths from 300mm to 1000mm to transport all the eggs from each house to the egg packing room. Egg grading & packing machines can we connected to the egg conveyor.

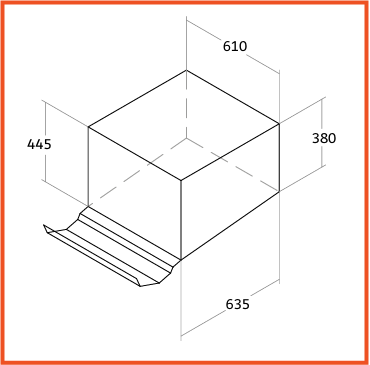

“H” Frame | Compartment Size (Cm.) | |||
---|---|---|---|---|
Length | Depth | Height | No. of Birds | |
Laying | 61 | 63.5 | 44.5/38 | 9 |
Laying | 61 | 71 | 49.5/43 | 10 |

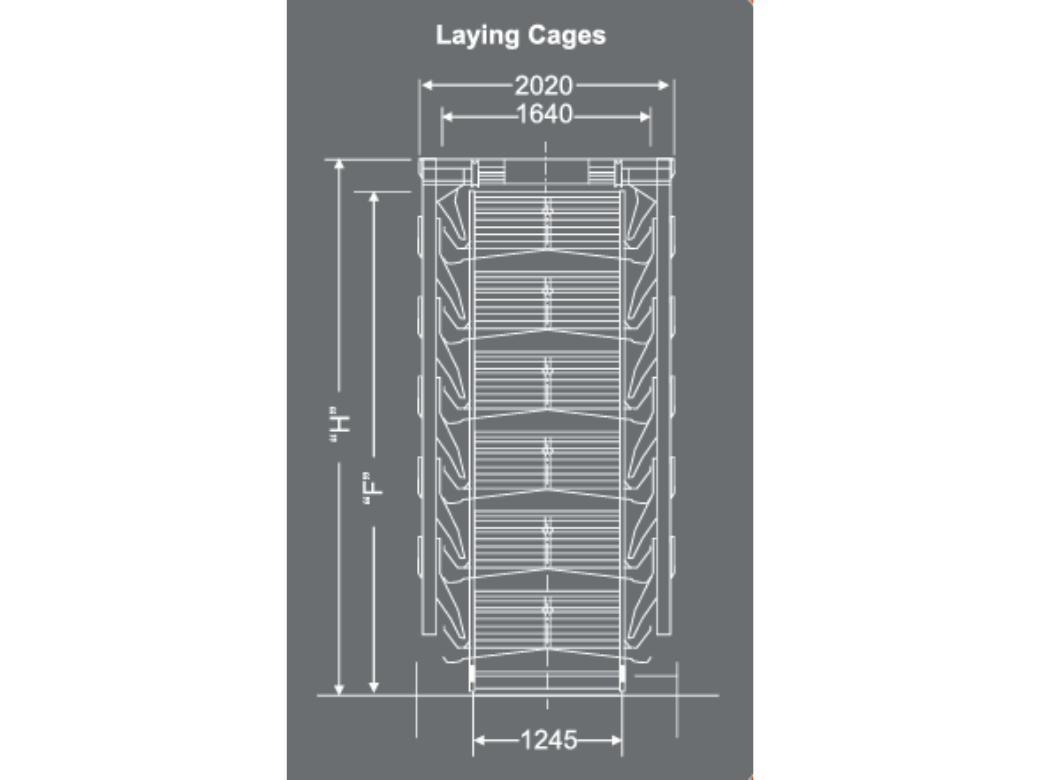

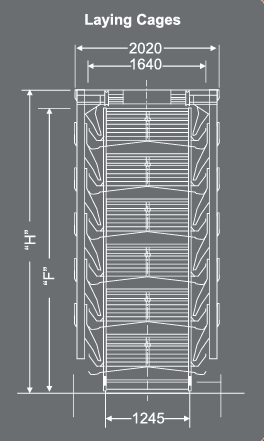

Laying Cages (mm) | ||||||
---|---|---|---|---|---|---|
3 | 4 | 5 | 6 | 7 | 8 | |
“H” | 2239 | 2834 | 3429 | 4025 | 4620 | 5215 |
“F” | 2049 | 2644 | 3239 | 3836 | 4431 | 5026 |
