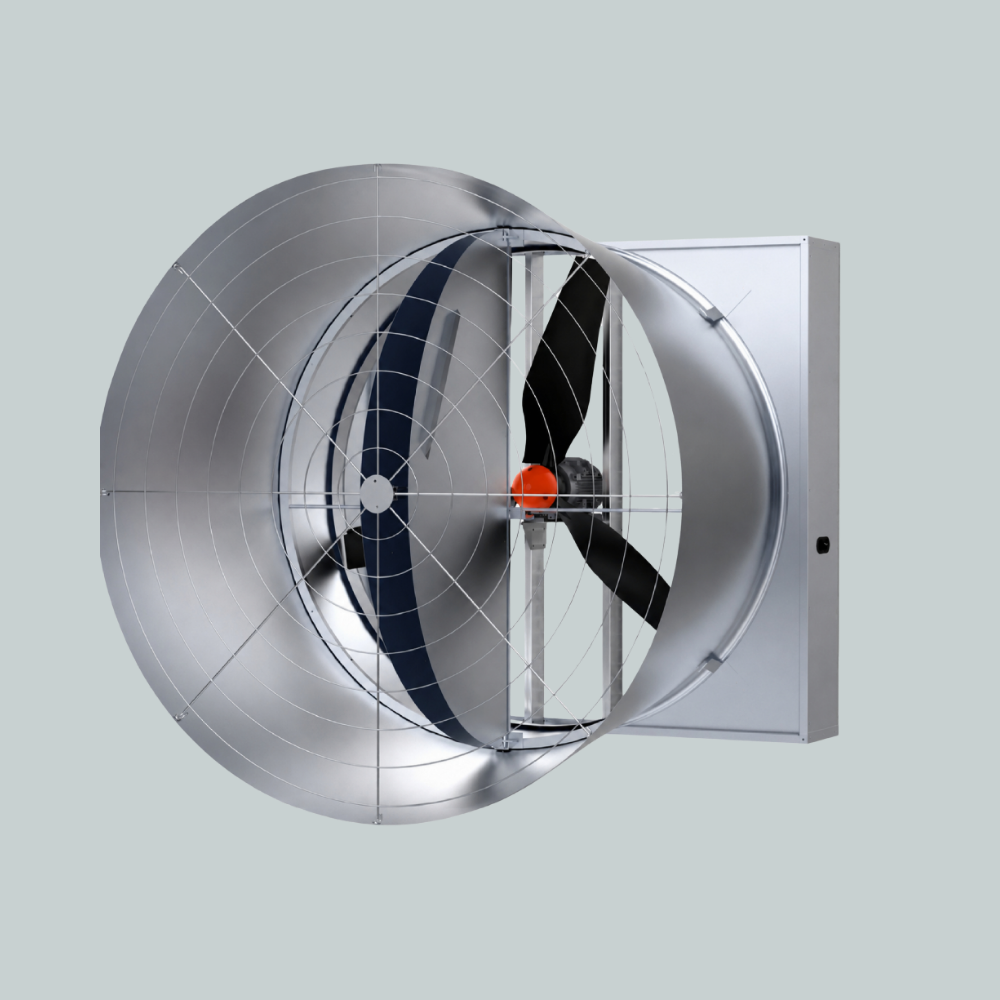

1380mm Cone – Nylon Blade
🐔 Environment Control – 1380mm Cone – Nylon Blade
Stable Environments for Healthier Livestock.
Product Details: 1380mm Cone – Nylon Blade
Fan Type: Heavy Duty
Phase: Three Phase
Material: Steel & Nylon Blade
Feature: Premium Quality
Blade Material: Nylon
Mounting Type: Wall Mounted
Shutter Type: Automatic
Product Description:
The 1380mm Cone – Nylon Blade is a high-capacity ventilation system specially designed for very large industrial and agricultural spaces. With its extra-large blade diameter and powerful motor, it provides maximum airflow to effectively remove heat, smoke, dust, humidity, and harmful gases.
This fan is ideal for environments where strong ventilation and temperature control are critical, such as poultry farms, dairy sheds, factories, warehouses, and large commercial buildings. Its robust construction ensures long-lasting performance even under continuous heavy-duty use.
1380mm Cone – Nylon Blade
| Fan Type | Heavy Duty |
|---|---|
| Fan Size | ≥ 1401 mm |
| Airflow | 50001–100000 m³/hr |
| Motor H.P. | 2 HP |
| R.P.M. | 1440 RPM |
| Voltage | 440 V |
| Static Pressure (Pa) | Airflow (m^3/hr.) | (^3/hr.)/W | W/1000m^3/hr |
| 0 | 52500 | 25.7 | 39 |
|---|---|---|---|
| 12 | 50500 | 24.2 | 41 |
| 25 | 48400 | 22.9 | 44 |
| 37 | 46300 | 21.6 | 46 |
| 50 | 44000 | 20.4 | 49 |
| 62 | 41100 | 18.9 | 53 |
| 75 | 37900 | 17.4 | 57 |
| 87 | 33800 | 15.6 | 64 |
| 100 | 28200 | 13.3 | 75 |
